HIOLA-M1_23SxT

High Intensity White Obstruction Light – ICAO Type A

High intensity white obstruction light for day/twilight/night time marking of structures that present a hazard to aviation: tall buildings, chimneys, cranes, towers. White Flashing (200.000 cd day / 20.000 cd twilight / 2.000 cd night).

Aircraft Warning Light HIOLA-M1_23SxT: High Intensity Type A
Order Code HIOLA-M1_23SxT
Light Type: High-Intensity, Type A
Typical use: Day, twilight and night time
Light source: LED
Type of beacon: Flashing
Colour: White according to CIE Chromaticity Boundary
Light Intensity: 200.000 cd day mode / 20.000 cd twilight mode / 2.000 cd night mode
Flashing rate: 20 ÷ 60 fpm (flash per minute)
Material of the body: Anodized aluminum
Input voltage: 110 – 230 Vac
Average power consumption: 70 W day mode @40fpm, 𝜏 = 500 ms per flash bulb
Peak power consumption: 840 W day mode

Download the PDF data sheet.

Download the technical data sheet in PDF format with complete information and technical drawings.

DOWNLOAD

KEY FEATURES

  • 4 modules projector with a modular design
  • designed and manufactured in Italy
  • extremely low power consumption

  • very high resistance to corrosion

  • very easy installation / plug ‘n’ play connections

  • extremely low wind factor
  • 360° horizontal coverage

  • no maintenance required over service life (up to 100.000 hours)

  • wide range of operating temperature range: -40 C° to +55 C°

OPTIONS

  • use as a stand-alone light or in a multiple light system with control board

  • integrated GPS based flash synchronization between lights (in a multiple light system)
  • remote monitoring and management with the Telemetry© system

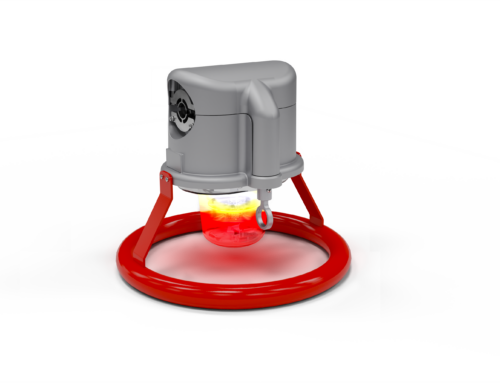

  • easy maintenance management with the Retractable© system

STANDARDS & CERTIFICATIONS

ICAO (International Civil Aviation Organization, a specialized agency of the United Nations) ICAO ANNEX 14, Volume I, Chap. 6 Visual aids for denoting obstacles. Type A, High-Intensity obstacle light.
FAA (Federal Aviation Administration, an agency of the United States Department of Transportation) FAA AC 150/5345-43 Specification for obstruction lighting equipment. none, High-Intensity obstacle light.
CAA-CA Civil Aviation Authority none High-Intensity obstacle light.
